ATOTO F7G1A5WE Single Din 5 inch.

Product Information

1. Product Version: F7 Wireless Edition (WE). Model: F7G1A5WE; Mounting style: USH05D (Universal Single-DIN Head unit with 5-inch Display)
2. WIRELESS & Wired Carplay and WIRELESS & wired Android Auto: (compatibility information is specified in the corresponding sections below)
3. HD 5" 800X480 RGB Touchscreen with DBEF Tech: Experience crystal-clear visibility with F7 WE's display, now enhanced with DBEF technology. Drive confidently even under bright sunlight with a screen that remains brilliantly clear.
4. Max. 4*45W, RMS 4*24W built-in amp: (Vcc=14.4v, THD=10%, drives 4-8 ohm speakers); 10-band EQ with 7 presets
5. Navigation: F7G1A5WE comes with a specific hardware solution to integrate iOS Carplay or Android Auto into its system so that you can run iOS Maps or Google Maps/Waze etc. on the HD screen, as long as they are available on your phone
6. HD 720P Front and Rear View Input with Live Rear View: you can check the front view and the rear view at any time, making driving safer (ATOTO AC-HD02LR rearview camera is required for LRV, sold separately)
7. Bluetooth 5.3: supports hands-free calls and streaming music; safer driving when you can answer calls/hang up, play/pause, switch tracks, adjust the volume, etc. on the car stereo, with the steering wheel controls, or with ATOTO AC-44F5 wireless remote (not included)
8. Radio tuner: Built-in FM/AM Radio Tuner.
9. 10 physical buttons: Dedicated physical buttons for different functions are very easy to adjust the volume or wake up voice assistant, etc., promote quick changes and safe driving.
10. Constant firmware update: ATOTO does not stop developing new firmware versions to add new features and reduce bugs. You can get them when available.

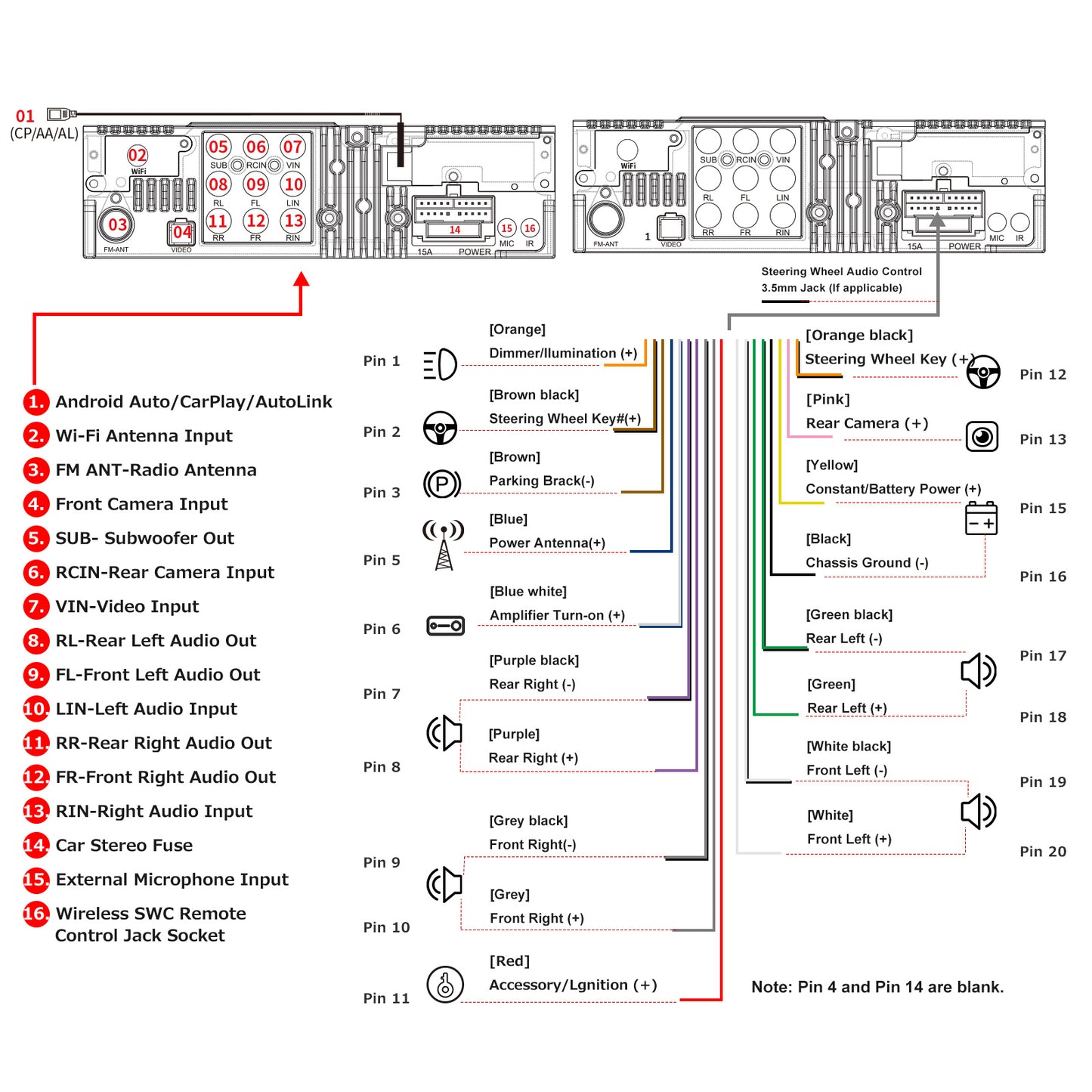

Inputs, Outputs & Slots

1. Inputs: 3 video inputs, Reversing Camera Input, AUX Audio/Video In & Front Camera Video In, can process 720P HD video signals. For reversing camera input, you can connect a specified ATOTO HD rearview camera to F7G1A5WE for 720P video display (most other car stereo brands can only process CVBS 480-600 lines video signals); For F7 WE car stereos, the specified rearview camera is AC-HD02LR (sold separately); AC-HD03LR is not compatible
2. Outputs: 2 RCA Headrest Video Outputs; 4-CH RCA Audio Out (4v) for connecting to a factory/aftermarket amplifier; Separate Subwoofer Out (4v)
3. External storage devices: One Micro SD slot - to store media files, up to 512GB; 2 USB interfaces - one for phone connection (CarPlay/Android Auto/AutoLink) and one for external storage devices and media playback. The latter reads up to 2TB SSD. Both SD & SSD must be in FAT32 or NTFS format

WIRELESS Phone Integration Link and Android Auto!

The advantages of CarPlay/Android Auto on F7 WE

1. Wireless is simply better: No more worries about where to put your plugged phone. No more searching for a holder that you find to be superfluous anyway. No more entangled cords to distract you. Free at last!
2. Fast and automatic connection: For Wireless Carplay/Android Auto, the Bluetooth connection is quick. And after you make the connection for the first time, it will all be automatic. For wired Phone Integration Link/Android Auto, once you plug your phone into the "Phone Link" port on F7 WE, it takes about 3 seconds for Phone Integration Link/Android Auto to be automatically launched. A true plug-and-play function.
3. Bluetooth 5.3 Stable data transmission: Thanks to the premium hardware inside, F7 WE is more than capable of delivering stable and reliable data transmission, both wirelessly (Wi-Fi) and weirdly (with USB), which is a strong bolster for you in driving.
4. Great Performance Across All Carplay/Android Auto Functions: Carplay/Android Auto has revolutionized the way we drive by enabling us to safely use the phone while driving. Now we can make calls, send/receive messages, listen to music/radio/podcasts/news/audiobooks... on the car stereo while driving really conveniently. This, in turn, requires a car stereo that can adequately meet the demands of these functions in terms of audio and visual performance.
5. Regarding audio, on F7 WE, the max. 4*45W amplifier with RMS 4*24W (Vcc=14.4v, THD=10%) makes sure that whether you are making a call, listening to your favorite music or podcasts, and so on, you can hear things clearly at a comfortable volume, powerful yet without any distortion. And the included microphone? Well, in our own customer's exact words: "I'm told that the sound is very clear."
6. Visually, the full HD 5" 800X480 DBEF touchscreen, other than its fantastic ultra-clear color rendition, offers great visibility even in broad daylight.
7. You phone battery is finally safe: If you get in the car with low battery on your phone, and you start driving using Carplay/Android Auto, on many car stereos with only wired Phone Integration Link/Android Auto, after the trip, the battery is barely charged, if at all. This problem does not exist with F7 WE. The reasons are with wireless Phone Integration Link/Android Auto, you can drive using Phone Integration Link/Android Auto while plugging your phone into the USB port dedicated for charging in your vehicle, or putting it on the charging dock station.

Important:

1. CarPlay compatibility: Wired CarPlay is compatible with iPhone 5 or later models with iOS 7.1 or higher. Wireless Phone Integration Link is compatible with iPhone 5 or later models with iOS 9.0 or higher.
2. Android Auto phone compatibility: Wired Android Auto is compatible with phones running Android 6.0 or higher. For wireless Android Auto, Compatible with Any Phone with Android 11.0, and Compatible with Samsung and Google phones with Android 10.0 (Google Pixel 4, Note 9, Note 20, and S10 have been tested to be compatible with wireless Android Auto on F7 WE). It also Compatible with below Samsung phones with Android 9.0 (S8 and Note 8 have been tested to be compatible with wireless Android Auto on F7 WE).
3. Original USB cable for wired connection: If you choose to use wired Carplay or wired Android Auto, factory/original USB cables are required. Non-manufacturer made USB cables may easily cause connection issues, such as black screen after minutes of playback, connection failure or unstable phone connection.

Vehicle Fit:

• Mirrored Display: 2 RCA video outputs let you connect up to 2 monitors. Experience the journey together with our mirrored display feature, seamlessly streaming your favorite movies, and media from the main screen to dual headrest displays — perfect for family trips and group travel, where shared viewing unites us all!
• Keep the OEM SWC: Enhance your driving experience while retaining the familiarity and safety of your vehicle's original steering wheel controls. If you intend to keep the OEM SWC (steering wheel controls) with a 3rd party adapter, F7 offers a dedicated 3.5mm jack. Or simply get the ATOTO AC-44F5 remote control (not included).
• 5-inch Touchscreen: The 5-inch rectangular display with indented sides ensures minimal dashboard interference.
• Compact chassis for more room: The chassis is only 50 mm deep, shorter than the typical depth. Therefore, there is a larger space for cabling and other accessories.
• Extra accessories you may need to purchase: As this is a universally fit car stereo, extra accessories may be required to finish installation in a specific vehicle (not provided in the package). It is the buyer's responsibility to prepare them (if applicable). They may include (but are not limited to) a dash frame kit, a wiring harness, a radio antenna adapter, a data interface, etc.

Notice: Optional parts for working with ATOTO F7 are sold separately: 1. ATOTO AC-44F5 Steering wheel control IR Remote; 2. ATOTO AC-HD02LR Live Rearview Camera (F7 is NOT compatible with AC-HD03LR); All ATOTO optional accessories/parts can be found here: amazon.com/atoto.
