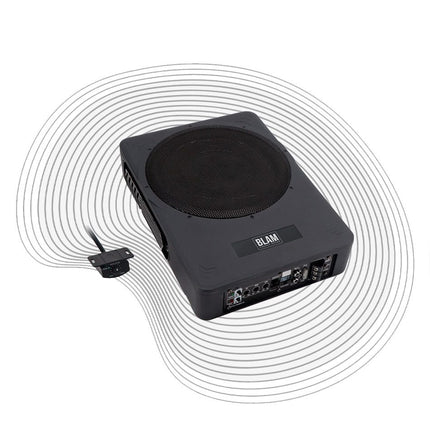

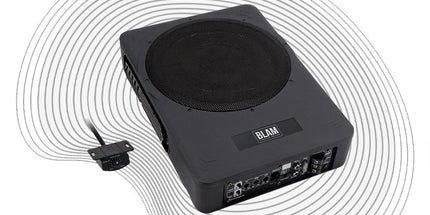

BLAM MSA 25 P

MSA 25 P AMPLIFIED SUBWOOFER

Technical specification

Extra-flat 25cm die-cast aluminum subwoofer with 360W integrated amplifier.

Composition

• amplifier maximum power: 360W / nominal power 180W
• compatible with most original car radios
• high level inputs with automatic start-up
• RCA inputs (6V compatible)
• frequency response: 50 Hz – 150 Hz
• bass boost (55Hz) adjustable from 0 to 12 dB
• fixed subsonic filter: 20 Hz
• LPF (low pass filter) 50Hz-150Hz / 12dB
• phase adjustment: 0/180
• supply voltage: 10.5-15.0 VDC
• 25 cm (10″) extra-flat subwoofer
• 2 Ω voice coil: 50 mm (2″)
• wired volume control (5m cable)
• dimensions: L 345 mm x h 245 mm x l 70 mm
• weight: 5,5Kg
